About 65% of U.S. homes constructed before 1980 use copper in part of their water supply system. This highlights the enduring importance of copper pipe fittings in plumbing systems. In this guide, we cover the essential copper fittings used throughout plumbing systems. They connect, redirect, and regulate water, gas, and refrigerant flows. Common examples include elbows, tees, couplings, adapters, unions, caps, plugs, compression fittings, flare fittings, and push-to-connect copper pipe connectors.
Check out 5/8 Copper Pipe
Copper remains a favorite among contractors and DIYers thanks to its durability, heat resistance, and water-quality benefits. Copper fittings can last for decades when they are installed correctly. As a result, they are often a cost-effective solution for many jobs.
This article will show you how to identify fittings based on size and function. We will also compare soldered connections with mechanical ones. You will learn how to source compatible parts through trusted suppliers like Installation Parts Supply. The goal is to give you straightforward advice for selecting the right plumbing fittings for your next project.
Copper Pipe Fittings: An Overview And Why Choose Copper
For both residential and commercial plumbing, copper pipe fittings remain a preferred option. Because they combine strength, workability, and long-term reliability, they are ideal for many systems. This overview explains the main reasons plumbers and contractors choose copper for new installations and repairs.
Benefits Of Copper
Copper is known for its durability and malleability, allowing fittings like elbows and tees to be shaped easily without cracking. Its high heat tolerance makes it a strong choice for hot-water supply lines and boiler loops. It also has bacteriostatic properties, which can make potable water systems safer than some plastic alternatives. It can be joined using solder, press systems, compression, or push-fit methods, providing flexibility in projects.
Longevity and corrosion resistance
Copper tubing often lasts from 70 to 80 years when it is installed correctly. Its surface oxidation creates a protective patina that slows deeper corrosion and supports long-term durability. To avoid pinhole leaks and premature failure, you need quality materials, proper fluxing, and clean joints. Routine inspections and the use of correct fittings can further extend service life in supply lines as well as HVAC loops.
Where Copper Outperforms Other Materials
In hot-water systems, refrigeration lines, and high-pressure applications, copper often performs better than many alternatives. In HVAC and refrigeration, pipe 5 8 and copper tube 5/8 sizes are commonly used for refrigerant circuits, ensuring reliable performance under pressure and heat. Copper fittings can tolerate higher temperatures and retain rigidity under stress better than PVC or PEX. Against multilayer or composite pipes, copper is less susceptible to impact damage and has a proven track record in legacy systems.
| Attribute | Why Copper Excels | Typical Use |
|---|---|---|
| Strength and Durability | Strong tensile performance and wear resistance | Hot-water supply lines and boiler loops |
| Temperature tolerance | Handles high temperatures without softening | Water heaters, HVAC lines |
| Corrosion performance | Forms protective patina that slows degradation | Long-run supply lines in homes |
| Joining options | Soldering, brazing, compression, push-fit, press | New installations and retrofit repairs |
| Common sizes | Includes pipe 5 8 and copper tube 5/8 used in refrigeration | Refrigerant circuits and tight commercial runs |

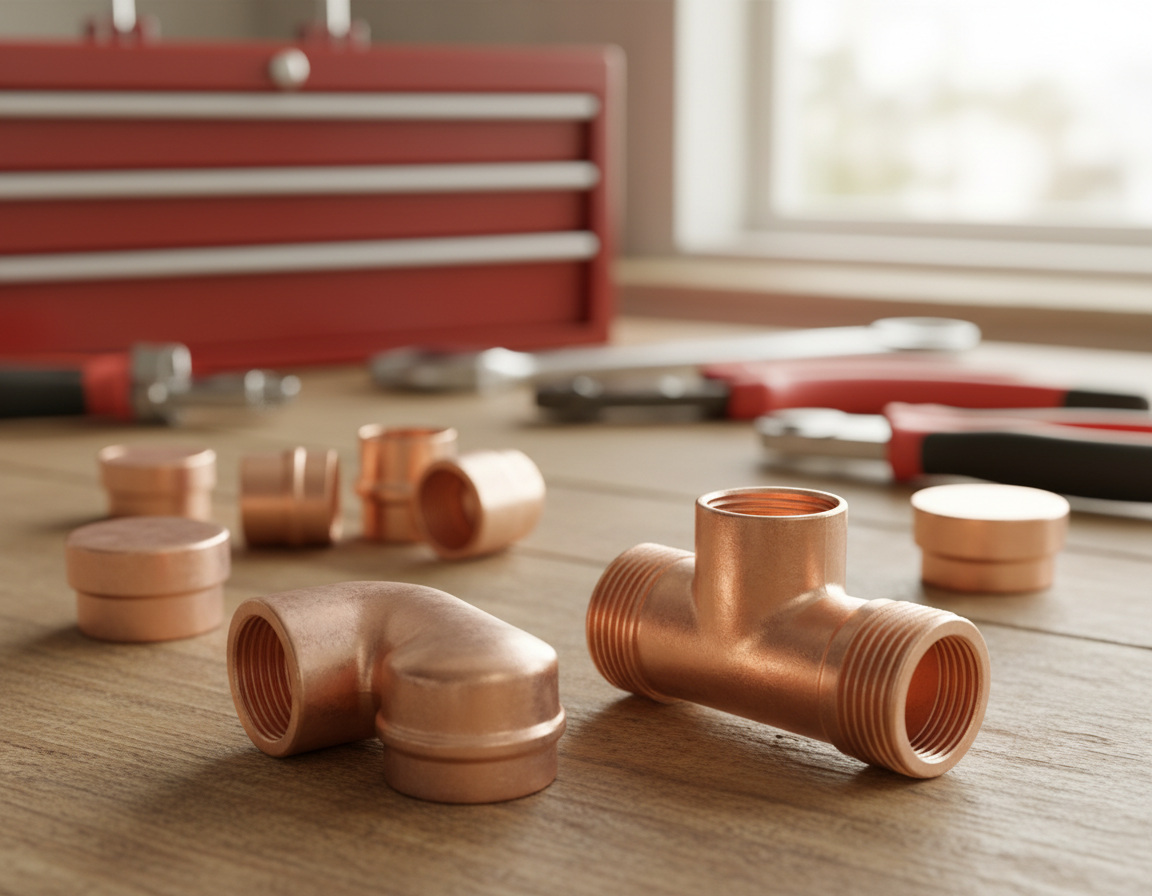

Common Types Of Copper Pipe Fittings Used For Supply Lines
Choosing the right copper fittings is key to a successful project. Here we cover important fittings used in water supply lines, including those for directional changes and service access. Be sure to consider connection style, pipe size, and material compatibility as you plan.
Elbows, Tees, And Crosses For Direction Changes And Branching
Elbows are used for 90°, 45°, and 22.5° angles to guide flow around corners. They are essential when routing around obstacles or following wall lines. Tees split or combine flow for three-way connections, common in kitchens and bathrooms. Crosses provide four-way connections and are useful where multiple lines intersect.
These fittings come in various styles, including sweat/soldered, press, and compression. Choose the connection style that matches your copper pipe connectors and the installer’s experience level.
Couplings, Adapters, And Unions For Joining And Maintenance
Couplings are used to join two pieces of copper pipe with the same diameter. When two different pipe sizes must be connected, reducing couplings are used. Adapters transition between materials or thread types, such as copper-to-brass or copper-to-PEX.
For repairs and equipment service, unions allow sections to be disconnected quickly. They are ideal in places where a valve or fixture must be removed periodically. Make sure unions and adapters match the pipe OD or nominal size to avoid leaks.
Caps, Plugs, And Clean-Outs Used For Sealing And Access
Caps are used to seal the end of a line, while plugs thread into fittings to close off branches. Both are often used during pressure testing and for temporary terminations. Clean-outs provide service access to drain lines for clearing blockages and maintenance.
You should choose caps, plugs, and clean-outs that are compatible with the system material and pressure. Make sure the fitting size reference—nominal, OD, or ID—is correct, since this is especially important for 5 8 copper fittings and similar parts.
During project planning, ensure that copper pipe connectors, couplings, adapters, and unions all match the pipe type. This prevents fit issues and simplifies maintenance.
Copper Compression And Push-To-Connect Fittings
Copper plumbing can be made faster and safer in many situations by using compression and push-to-connect fittings. These fittings are especially useful when a torch is not practical or when a fast repair is required. The following section covers how each system works, where each is appropriate, and what installation tips matter for 5/8 copper tube projects.
How Compression Fittings Form A Seal
Compression fittings form a seal by using a nut and a ferrule. As the nut is tightened, the ferrule compresses against the tube and grips the copper. This method forms a leak-resistant joint without the need for heat. These fittings are often used on supply lines and in repair work where a torch is impractical.
They are effective on a range of sizes, including 5 8 copper pipe fittings. Because they can be disassembled when installed correctly, they are well suited to accessible valves and meter connections.
Push-To-Connect Fittings For Fast Installations
Push-to-connect copper fittings, also known as quick-connect fittings, allow you to push a deburred tube into the body until it clicks. They require no solder, no crimping, and no special tools. This ease of use makes them popular among both DIYers and professionals working in confined areas.
These fittings are available for common sizes such as 5/8 copper tube. Many brands provide pressure and temperature ratings. Reliable results depend on matching the fitting to the tubing type and following the manufacturer’s depth guidelines.
Why These Fittings Are Better Than Solder In Some Jobs
With compression and push-fit copper fittings, there is no need for a torch, flux, or open flame. This lowers fire risk in occupied buildings and speeds up retrofit work. They are also time-saving options for emergency repairs and installations in tight spaces.
Mechanical fittings can be more expensive per piece and may have lower temperature ratings than soldered joints, so that should be kept in mind. Always check ratings before using quick-connect fittings on hot-water or high-pressure lines. Used correctly, these fittings can be a safe, flexible alternative to soldering in many plumbing jobs.
Sweat And Soldered Copper Fittings
Sweat connections use flux and filler metal to create a strong bond between the pipe and fitting. Brazing, on the other hand, employs higher heat and a different filler that melts above 840°F. It is commonly used for HVAC and refrigeration joints. When done correctly, both methods create durable, long-lasting joints.
Overview Of Techniques
In sweat copper fittings, solder fills the gap between the fitting and the copper tube. Because it uses a hotter flame and brazing rod, brazing copper pipe is better suited to joints that face higher temperatures and pressures. Which method to use depends on the needs of the system and any applicable local regulations.
Tools and safety gear
Important tools include a tube cutter, deburring tool, wire brush or emery cloth, flux, solder or brazing rod, and a torch. Propane is used for soldering, while MAPP or acetylene is better for brazing. Protective goggles, a face mask or respirator, heat-resistant gloves, an apron, and safety shoes should always be worn.
Soldering Tips Step by Step
- Cut the copper tube 5/8 section squarely and deburr the edge for a smooth fit.
- Use emery cloth or a wire brush to clean both the pipe and fitting until bright copper is visible.
- Apply flux to the cleaned surfaces, assemble the joint, and twist slightly to distribute flux evenly.
- Use an enveloping flame to heat the fitting evenly, and when brazing copper pipe, watch for a faint red tint as heat increases.
- Feed solder or brazing rod at the joint; allow capillary action to draw filler around the seam.
- Let the joint cool on its own, then remove any soot and flux residue using an appropriate cleaner.
When To Choose Soldered Fittings
Opt for copper solder fittings for a permanent, reliable joint in potable water systems and moderate temperatures. Brazing is better suited for HVAC or refrigeration where higher temperature resistance is needed. Any work involving 5/8 copper tubing or copper tube 5/8 sized lines should follow manufacturer instructions and code requirements for pressure compatibility.
Practical considerations
Proper technique is essential if you want to avoid porosity and cold joints. Inspect each joint for full solder coverage and test systems under pressure before insulation or concealment. For many plumbing jobs, sweat copper fittings are a staple, while brazing copper pipe is best for demanding HVAC and refrigeration applications where durability is critical.
Specialty Copper Fittings Used In Refrigeration And HVAC
HVAC and refrigeration systems require precise fittings and tubing to move refrigerant safely. Technicians select materials and connection styles according to pressure, code requirements, and service access. A good understanding of common fitting styles and sizes helps avoid leaks and maintenance headaches.
5/8 copper pipe is often used for liquid and suction lines in light commercial and residential systems. Before ordering parts, it is important to confirm whether the specification refers to nominal size or outside diameter (OD).
5 8 copper tube needs to match fittings that are sized for that outside diameter. If the parts are mismatched, the result can be poor seals and unsafe joints. When selecting copper pipe fittings refrigeration components, use manufacturer compatibility charts.
5/8 Copper Pipe And 5/8 Refrigeration Tubing Applications
For refrigerant lines, precise bends and consistent wall thickness are essential. A length of 5 8 copper refrigeration tubing is suitable for liquid lines and smaller suction runs. Service valves, filter driers, and meters are often designed around the 5/8 OD copper tubing size.
Flare, Bite-Type, And Brazed Fittings For Refrigerant Lines Under High Pressure
A flare fitting seals by compressing the flared end of a tube under a flare nut. Technicians use flare fittings where serviceability matters, such as access panels and gauges. Flare joints can be hand-tightened for field servicing.
Bite-type fittings rely on a ferrule that bites into the wall of the tube when tightened. Installers often prefer bite-type fittings when there is limited space or when flaring is difficult. They provide quick assembly and strong vibration resistance in mobile applications.
A brazed fitting creates a strong, leak-resistant metallurgical bond. HVAC systems operating at high pressures or elevated temperatures often need brazed connections. Codes and manufacturers may mandate brazing for specific refrigerants and high-pressure circuits.
Sizing Notes: 5 8 Copper OD, ID, And How To Select Compatible Fittings
Before buying fittings, confirm the difference between 5/8 od copper tubing and 5/8 id pipe. Pipe with a 5/8 id has a smaller outside diameter than tubing labeled 5/8 OD. Checking both ID and OD helps prevent fitting mismatches and possible leaks.
| Characteristic | 5/8 OD Copper Tubing | 5/8 ID Pipe |
|---|---|---|
| Typical Use | Refrigerant liquid/suction lines, service connections | Less common for refrigerant lines, more common in plumbing |
| Matching fittings | Flare fittings, bite-type fittings, brazed fittings rated for 5 8 copper tube | Threaded or compression fittings sized to ID-based plumbing standards |
| Installation notes | Check flare nut size and ferrule type before flaring or tightening | Measure OD when adapting to HVAC components to ensure fit |
| Pressure Suitability | High-pressure refrigerant circuits with correct wall thickness | Varies by pipe class and is often lower than refrigeration-rated tubing |
Choose parts by matching the tubing OD to the fitting specification, and select copper pipe fittings refrigeration products that specifically list compatibility with 5/8 od copper tubing. For field repairs, it is wise to keep flare fittings and bite-type fittings on hand. Where pressure requirements or code rules demand permanent high-strength joints, use brazed fittings.
How To Choose The Right Copper Fitting: Sizing, Material, And Code Considerations
Selecting the right copper fitting requires precise measurement and an understanding of performance ratings. You must read labels carefully to determine whether they refer to outside diameter or nominal sizing. This is a critical step for preventing leaks and ensuring the fitting matches the needs of the system.
Many refrigeration and HVAC parts are sized by outside diameter. For example, 5 8 copper pipe od is a common size in refrigeration tubing. On the other hand, residential plumbing often employs nominal sizes based on internal diameter. Before buying, always review the manufacturer’s notes for 5/8 in copper pipe sizing.
When fitting pipe to fittings, verify whether the tubing is listed as 5 8 id tube or 5 8 od tubing. Compression, sweat, flare, and brazed fittings all require specific preparation and clearances. Select the fitting method that aligns with the application and pressure level.
Material choice and joint type are determined by system pressure and temperature. For hot potable-water systems, high-temperature-rated soldered or press fittings are recommended. For high-pressure refrigerant lines, flare or brazed joints are often the better choice. Brass adapters are ideal for transitioning between copper and other metals.
Local plumbing codes also play a significant role. Before beginning the job, review the local plumbing codes copper fittings requirements. In some areas, brazed joints are required for HVAC refrigerant work, or mechanical fittings may be restricted in concealed spaces. To satisfy code and warranty standards, look for NSF/ANSI or UPC certifications.
When selecting the best copper fittings, purchase from reputable suppliers like Ferguson or Grainger and follow manufacturer instructions. If in doubt, consult a licensed plumber or HVAC technician to confirm the fit and rating. This helps prevent expensive rework.
| Attribute | Common Marking | When to Use | Notes |
|---|---|---|---|
| Refrigeration tubing type | 5 8 copper pipe od | High-pressure refrigerant lines | Fittings usually sized by OD; use flare or brazed joints |
| Supply water tubing | 5/8 in copper pipe sizing (nominal) | Residential water-supply systems | Confirm whether label refers to ID or nominal size |
| Compression fitting style | Often marked by tube OD or nominal ID | Retrofit work and quick repairs | Suitable for low-to-moderate pressure; follow torque specifications |
| Sweat or soldered fittings | Usually listed by nominal size | Hot-water systems and durable joints | Proper cleaning, heat, and flux are required for leak-free joints |
| Flare fittings | 5 8 id tube or 5 8 OD in some specs | Refrigeration and fuel lines | Do not mix flare and compression unless rated for both |
| Approved certifications | UPC and NSF/ANSI | Potable-water systems | Required under many local plumbing codes copper fittings requirements |
A detailed checklist should be followed: confirm sizing, verify certifications, choose fittings for the correct pressure and temperature, and ensure proper installation. That approach will help you choose copper fittings that work well and meet local regulatory requirements.
Copper Fittings: Installation Tips, Common Mistakes, And Maintenance
Preparation is one of the most important steps in avoiding failures. Adhering to basic installation tips for copper fittings can significantly reduce leaks and rework. The way the system is assembled plays a major role in its long-term performance. This applies whether you are working with standard home supply piping or a 5/8 od copper tube for HVAC lines.
Cutting, deburring, and cleaning pipe ends before assembly
Begin with a proper tube cutter so you get a square cut. After cutting, it’s essential to remove burrs and copper shavings from the pipe ID and end. The outer pipe end and inner fitting surface should be cleaned with emery cloth or a wire brush. This step is necessary for even flux and solder flow. Without proper prep, capillary action is compromised, leading to leaks.
Proper use of flux, heat, and solder; avoiding cold joints and leaks
Flux should be applied evenly to both mating surfaces before the joint is assembled. Then heat the fitting evenly. To distribute heat uniformly while soldering copper pipe, keep the flame moving. Feed solder to the heated seam and let capillary action pull it into the joint. You should avoid both overheating, which burns flux and weakens the joint, and underheating, which leads to cold joints and leaks.
Using Teflon Tape And Thread Sealants While Avoiding Overtightening
For threaded copper fittings, use Teflon tape or a compatible pipe thread sealant on male threads. Wrap the tape clockwise to ensure it stays in place while threading. Overtightening should be avoided because excessive torque can strip threads or crack fittings. For compression fittings, use the manufacturer’s recommended torque or turn count so the ferrule is not crushed.
Routine Inspection, Leak Prevention, And Fitting Replacement
Copper fittings should be inspected regularly for pinhole leaks, corrosion, and mechanical damage. Leak prevention starts with correct assembly but continues with periodic checks. Fittings should be replaced when leaks continue after tightening, when corrosion is visible, or when a system is upgraded to current standards.
Common errors include skipping cutting, deburring, and cleaning steps, mixing OD and ID sizing conventions, overheating joints during soldering, and ignoring pressure limits set by the manufacturer. Reliable systems depend on following product instructions and keeping spare parts from trusted suppliers such as Mueller Industries or Viega.
Conclusion
Copper pipe fittings stand out in plumbing and HVAC due to their durability, heat tolerance, and long lifespan. The specific job determines whether soldered joints, compression fittings, push-to-connect options, flare fittings, or brazed assemblies are the best choice. It’s critical to match the fitting type and size correctly. To avoid mistakes, pay close attention to OD versus ID sizing, especially with sizes like 5/8.
When selecting copper fittings, ensure they meet pressure ratings, material standards, and local codes. For dependable support and quality products, work with a trusted wholesale distributor such as Installation Parts Supply. They provide compatibility charts and certification details to help guide your selection for any plumbing project.
Effective preparation and installation are key to a lasting system. Begin by cutting, deburring, and cleaning pipe ends. Then follow the recommended procedures for fluxing, heating, or mechanical assembly. Routine inspections and timely replacement of worn fittings are important for keeping the system safe and leak-free.
